Behind every electronic innovation lies a fundamental truth: the performance of any system is only as strong as the components that drive it. SAMSUNG has established itself as the world's largest semiconductor manufacturer, with its Device Solutions (DS) division driving innovation in memory and logic chips that power everything from data centers to consumer electronics . SAMSUNG manufactures a comprehensive portfolio including DRAM, NAND Flash, and System LSI products, with its memory business holding the world's biggest market share.
HONTEC, a leading manufacturer of printed circuit boards serving high-tech industries across 28 countries, combines precision PCB manufacturing with comprehensive component intelligence. HONTEC recognizes that the relationship between a SAMSUNG memory IC and the board that hosts it is symbiotic; the most advanced SAMSUNG HBM3E will underperform on a poorly designed substrate, and the most sophisticated PCB cannot compensate for an improperly selected component [citation:URL]. This understanding drives HONTEC to offer integrated solutions that consider the complete system rather than isolated elements.
SAMSUNG has undergone significant transformation, pivoting from a commodity memory supplier to a leading player in high-value-added memory and logic solutions. The company's portfolio spans:
- Memory Solutions: High-bandwidth memory (HBM3E for AI accelerators), DDR4 and DDR5 memory modules, LPDDR5 for mobile applications, and GDDR7 for graphics
- NAND Flash & Storage: Consumer and enterprise SSDs, embedded flash solutions (eMMC, UFS), and 3D NAND technology with high layer counts (currently over 236 layers)
- Advanced Packaging: Through-silicon via (TSV) technology enabling high-performance memory stacking
- System LSI: Foundry services and logic ICs for mobile, automotive, and IoT applications
SAMSUNG application notes emphasize that proper PCB design is essential for maximizing high-speed memory performance. HONTEC engineering team applies these principles:
- Impedance Control: DDR5 and HBM memory interfaces require tightly controlled impedance (e.g., 40Ω single-ended, 80Ω differential) to maintain signal integrity
- Trace Length Matching: Data, address, and control signals must be length-matched with minimal skew to ensure reliable timing
- Reference Planes: Continuous, unbroken ground planes adjacent to memory routing layers are essential for minimizing crosstalk
- Via Management: Back-drilling and reduced stub lengths are critical for high-speed DDR5 interfaces operating at 4800-8400 MT/s
- Decoupling Strategy: SAMSUNG recommends specific capacitance values and placement guidelines for different power rails
- Power Plane Design: Dedicated power planes with controlled impedance are necessary to supply stable voltage
- Thermal Management: HONTEC advises on copper pour strategies, thermal via placement, and heatsink attachment methods that ensure memory ICs operate within specified junction temperatures [citation:URL]
HONTEC maintains assembly capabilities tailored to the unique requirements of SAMSUNG IC components:
- Solder Paste Stencil Design: For fine-pitch SAMSUNG BGA packages, stencil thickness and aperture geometry are optimized for consistent solder volume [citation:URL]
- Reflow Profiling: Thermal mass of SAMSUNG packages is considered to ensure all solder joints reach proper temperature without damaging gradients [citation:URL]
- X-Ray Inspection: For BGA packages, X-ray inspection verifies uniform solder ball collapse and acceptable void limits [citation:URL]
- Moisture Control: HONTEC maintains controlled humidity environments for moisture-sensitive SAMSUNG components, applying baking when necessary [citation:URL]
Selecting the right SAMSUNG memory IC involves balancing performance, capacity, power consumption, and cost. The process begins with defining functional requirements—memory type (DRAM, NAND), density, speed grade, and interface standard. For DRAM, key specifications include data rate (e.g., DDR5-4800 vs. DDR5-8400), operating voltage (1.1V for DDR5 vs. 1.2V for DDR4), and latency characteristics. For NAND, considerations include write endurance, read speed, and storage density. SAMSUNG offers various package types including BGA, FBGA, and TSOP to accommodate different design constraints. Operating temperature range must align with the intended environment, with industrial and automotive designs requiring extended tolerance. HONTEC engineering team provides guidance during design review, helping clients evaluate component selections against manufacturing capabilities. For designs where availability presents challenges, HONTEC offers alternative sourcing recommendations and can advise on pin-compatible substitutions.
The relationship between a SAMSUNG memory IC and the board that carries it is fundamentally interdependent. A SAMSUNG DDR5 module can only perform to its specifications if the PCB provides adequate power delivery, signal integrity, and thermal management. Memory interfaces require carefully controlled impedance, length matching, and minimal crosstalk. SAMSUNG provides detailed application notes covering layer stacking, trace routing, and via strategies for their memory products. Power distribution network design directly affects memory performance; insufficient decoupling capacitance or improper placement of bypass capacitors can introduce voltage ripple that causes data errors. Thermal management is critical for high-performance memories like HBM, which can dissipate significant power. HONTEC manufacturing processes support these requirements through tight impedance control, precise via formation, and advanced surface finishes that ensure reliable solder joint formation [citation:URL].
SAMSUNG memory IC assembly requires specialized processes that differ significantly from discrete component placement. HONTEC maintains assembly capabilities tailored to the unique requirements of SAMSUNG IC components. Solder paste stencil design receives particular attention for SAMSUNG BGA packages, which can have ball pitches as fine as 0.8mm. Reflow profiling considers the thermal mass of the SAMSUNG package itself, ensuring all solder joints reach the appropriate temperature without exposing the component to damaging thermal gradients. For BGA SAMSUNG packages, X-ray inspection verifies uniform solder ball collapse and acceptable void limits. SAMSUNG has pioneered TSV technology for 3D stacking, requiring advanced handling techniques. Electrical testing extends beyond continuity to include functional testing, verifying that the SAMSUNG memory component responds correctly to read/write commands and operates at rated speeds. HONTEC maintains controlled humidity environments for moisture-sensitive SAMSUNG components, with baking processes applied when necessary to prevent popcorning during reflow [citation:URL].
HONTEC brings decades of experience in PCB manufacturing to bear on the complete electronic assembly process, supporting clients with integrated solutions that encompass board fabrication, component sourcing, and assembly services. The combination of advanced PCB fabrication, comprehensive component intelligence, and responsive customer service makes HONTEC a valued partner for engineering teams seeking reliable electronic solutions [citation:URL].
- Global Delivery: HONTEC partners with UPS, DHL, and world-class freight forwarders to ensure efficient global delivery [citation:URL]
- Responsive Communication: Every inquiry receives a response within 24 hours, reflecting a commitment to responsive partnership [citation:URL]
- Quality Certifications: UL, SGS, ISO9001, with ongoing implementation of ISO14001 and TS16949 standards [citation:URL]

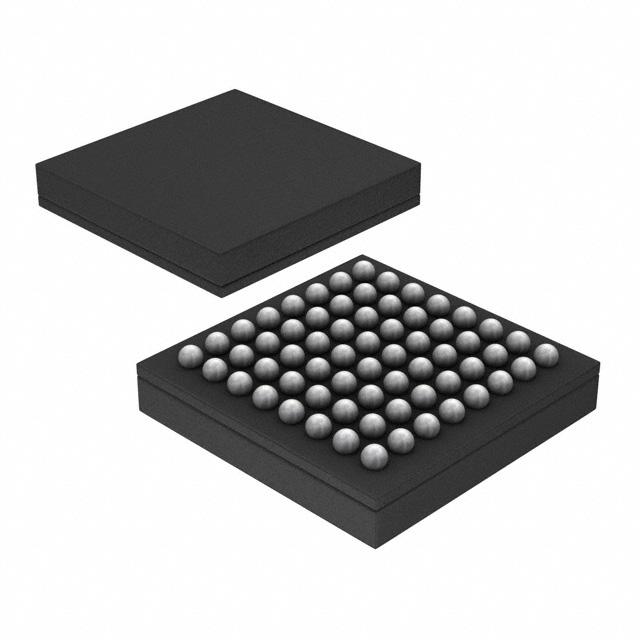

K4B4G1646E-BCNB औद्योगिक नियंत्रण, दूरसंचार और ऑटोमोटिव सिस्टम सहित विभिन्न अनुप्रयोगों में उपयोग के लिए उपयुक्त है। यह डिवाइस अपने उपयोग में आसान इंटरफ़ेस, उच्च दक्षता और थर्मल प्रदर्शन के लिए जाना जाता है, जो इसे बिजली प्रबंधन अनुप्रयोगों की एक विस्तृत श्रृंखला के लिए एक आदर्श विकल्प बनाता है।
